AUTOVAN CANATURE BNT 650 - VALVE FOR SOFTENING COLUMN

AUTOVAN CANATURE BNT 650 - VALVE FOR SOFTENING COLUMN

SKU: BNT650

0₫

Thông số kỹ thuật

Product code:

BNT650

Guarantee:

12 months

Origin:

China

Importer:

Minh Thu Production, Service and Trading Company Limited

Canature pressure filter products are designed and manufactured using advanced production lines: By automatic robots. Products are widely distributed in major markets in North America, and many countries around the world.

Mô tả

Minh Thu Production, Service and Trading Company Limited is a reputable supplier of pressure filter equipment and water treatment equipment, wastewater treatment equipment, RO pure water filtration systems, bottled water production, etc. in the North. In recent years, our products have been present in all provinces in the North - Central - South regions.

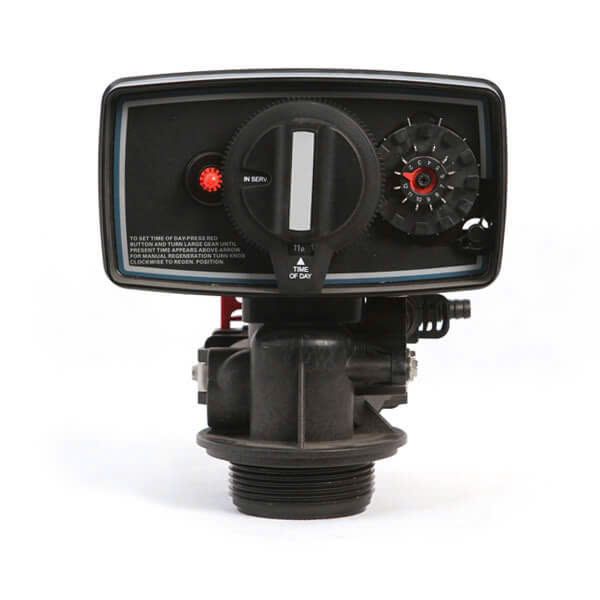

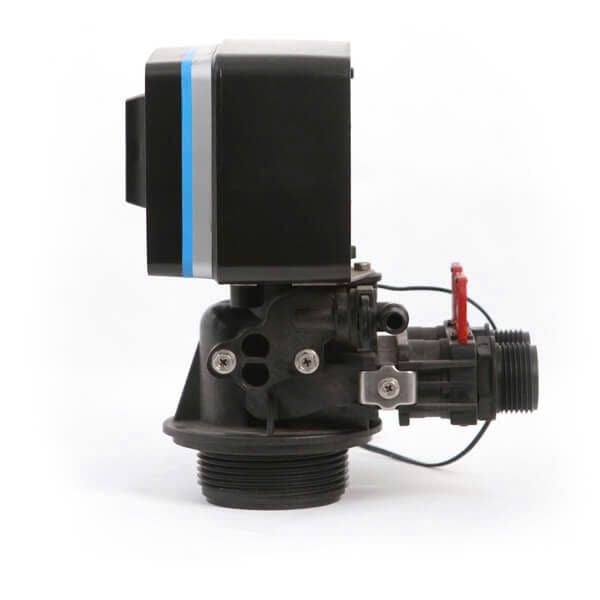

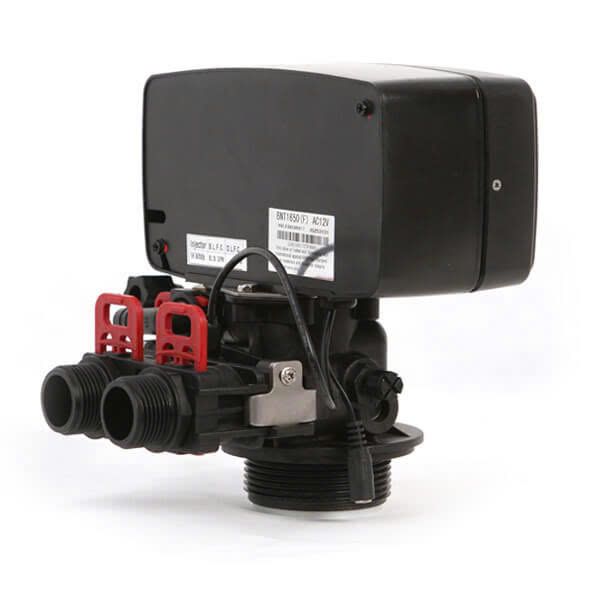

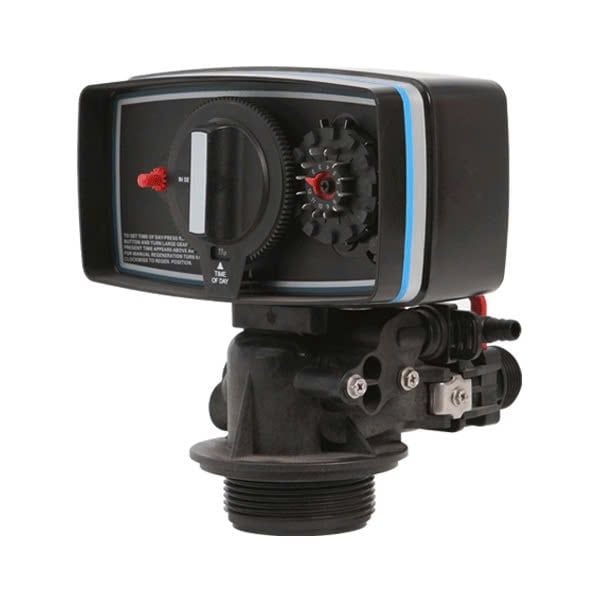

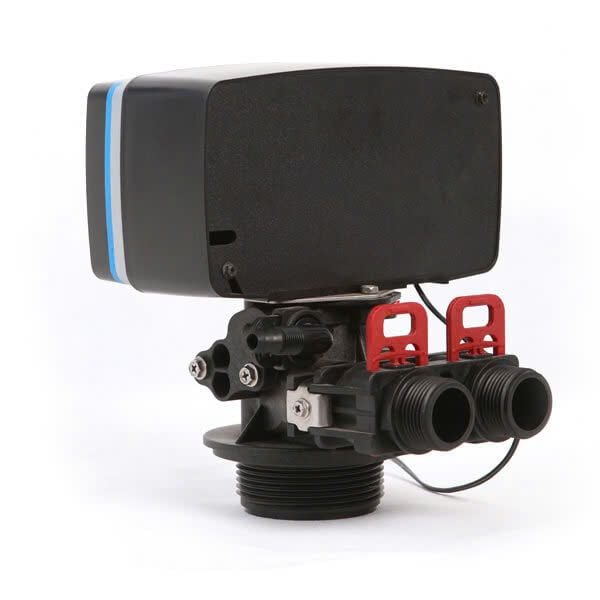

AUTOVAN CANATURE BNT 650

(BNT 650 series control valve – 3/4”, DF electronic control)

- Hydrostatic test pressure: 350 psi (24.15 bar)

- Working pressure: 20-125 psi (1.38-8.62 bar)

- Working temperature: 1 – 39C

- Accelerator tube diameter requirement: 1,050 inches (26.7mm)

- Power adapter: Input: AC 110V/ AC 240V, 50Hz / 60Hz. Output: AC 12V

- Inlet/Outlet connector: 1″, 3/4″, 1/2″ (PPR, PPO, Copper)

Features

Simple, user-friendly LCD display. Just enter the time of day, difficulty and number of people
Features a manual handwheel for faster cycle settings and easier maintenance.
Accurate and reliable electronic sensor for precise valve position determination.
The Totalizer function monitors the total amount of water treated.
An audible alarm sounds if the valve is stuck in any position for more than 2 minutes.
The capacitor stores the date/time of the day for 48 hours while the program remains in permanent memory (the capacitor has a better lifespan and charging speed than the battery (charging time: capacitor 1 second, battery a few minutes to hours, number of capacitor charges: millions, battery: 500 times).
Calendar, instant, delayed meter and meter override modes.

- 2AM revert calendar mode,

- Water volume measurement mode (eg when reaching 3m3, proceed to full scale)

- Late, like method 2 but will not restore immediately but wait until 2AM.

Don't use confusing codes or symbols to remember,
Cycle time is fully adjustable.
Unique bypass valve with integrated space-saving turbine meter. One-piece design prevents meter jamming
Save time with quick connections for easy installation and maintenance.
Language: English, Spanish, French, Russian, Turkish, Polish, Chinese
Customizable units: liter/gallon, Kg/lbs, mg/grain

Specifications
Valve body material	Noryl (PPO)
Connecting the plumbing system	Straight 1/2”, 3/4”, 1” BSP & NPT 1/2”, 3/4” & 1” BSP & NPT Elbows
Tank Theme	2-1/2” NPSM
Adjustable cycle	0 ~ 99 minutes
Rebirth	Downstream
Accuracy of the meter	± 5%
Pilot Distributor	1.05 “
Drainage	1/2 ” Quick Connect
Salt water stream	3/8” Quick Connect
Flow rate (measured with 50 psi valve inlet)
Continuous (15 psi reduction)	4500 L/H
Peak (25 psi drop)	5900 L/H
Maximum Backwash (25 psi drop)	1600 L/H
CV	5.2
Softener	Diameter up to 16”
Filter	Diameter up to 10”
