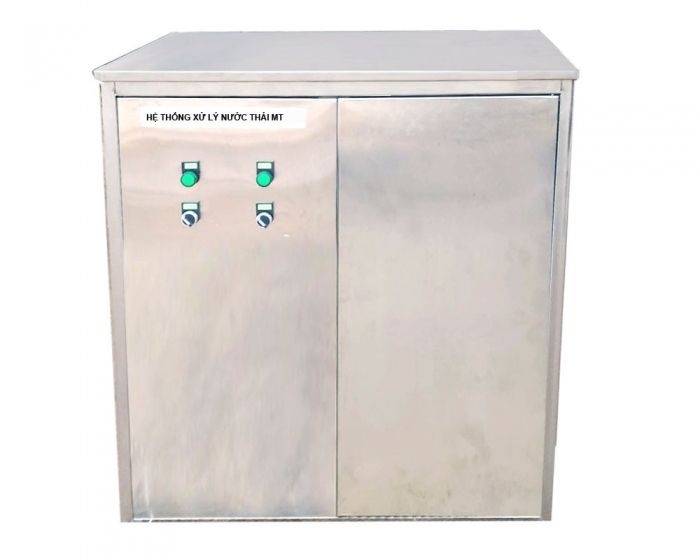

Environmental wastewater treatment system

Environmental wastewater treatment system

SKU: MT-YT300
-5% 19,000,000₫ 20,000,000₫

Thông số kỹ thuật

Product code:MT-YT300
Voltage:220V/50HZ
Power:86W
Filter capacity:150 - 300 Liters/day
Material:The entire machine case is stainless steel.
Weight:45 kg
Size:LxWxH: 90 x 40 x 90 (cm)
Standard:QCVN 28:2010/BTNMT - national technical regulation on medical wastewater
Guarantee:12 months
Origin:Vietnam
Production unit:Minh Thu Production, Service and Trading Company Limited

The machine is suitable for:  Medical clinics, dental clinics, ENT clinics, ....

Selling price includes: output water testing fee according to  QCVN 28:2010/BTNMT standard of Vietnam Ministry of Natural Resources and Environment

The above price does not include VAT.

Mô tả

What requirements must medical wastewater comply with before being discharged into the environment?



Medical wastewater contains many toxic substances and can be dangerous to human health and the environment if not treated properly. Therefore, before being discharged into the environment, medical wastewater must comply with the following requirements:

  1. Must be collected and treated on site: Medical wastewater must be collected and treated on site, avoiding direct discharge into the environment.
  2. Must go through a treatment process: Before being discharged into the environment, medical wastewater must be treated by methods such as using a wastewater treatment system, using disinfectant chemicals, or using UV light sterilization techniques to destroy bacteria, viruses, and other toxic substances.
  3. Must meet standards: Medical wastewater must meet environmental, health, labor safety and disease prevention standards before being discharged into the environment. In Vietnam, medical wastewater before being discharged into the environment must meet QCVN 28:2010/BTNMT National technical regulation on medical wastewater  - General Department of Environment, Department of Science and Technology and Department of Legal Affairs submitted for approval and issued under Circular No. 39/2010/TT-BTNMT dated December 16, 2010 of the Minister of Natural Resources and Environment.
  4. Must be monitored: The medical wastewater treatment process needs to be closely monitored and controlled to ensure that it meets environmental and human health requirements.
  5. Compliance with regulations: All government regulatory agencies' regulations and guidelines regarding the handling, transportation, and disposal of medical wastewater must also be fully complied with.

   ​​

Wastewater treatment system with capacity of 150 - 300L/day and night

Model: MT-YT300

Wastewater filtration design through 4 stages.

  1. Step 1: Separate the trash.
  2. Step 2: Microbiological treatment and adsorption of toxic substances.
  3. Step 3: Heavy metal removal
  4. Step 4: Disinfect. Then release into the environment.

Structure of MT Wastewater Treatment System - Model: MT-YT300



+ Equalization tank:  Contains collected wastewater

+ Booster pump: The booster pump has the effect of sucking wastewater from the equalization tank and pushing it through the rear modules with a stable flow.

+ Filter No. 1 : Contains particles that adsorb toxic substances and microorganisms.

  • It has the following effects: deodorizing, absorbing toxic substances, removing dirt, absorbing heavy metals dissolved in water, thoroughly cleaning dissolved organic substances. In addition, during the filtration process, this module is implanted with microorganisms that can decompose organic substances and nourish beneficial microorganisms, which makes the wastewater thoroughly treated in terms of organic matter. (microbial strains grow, develop, and convert pollutants in wastewater into nutrients for cells, reducing the concentration of pollutants in wastewater)
  • After being treated, the water is filled into the second column.

+ Second filter : Contains heavy metal treatment beads, exchanges and removes ammonia

  • This is the optimal method in the process of treating medical wastewater. This method is used to remove salts, remove hardness (Calcium), remove nitrate, remove color, remove residual heavy metal ions and other metal ions in medical wastewater. The ion exchange method is very environmentally friendly because it only absorbs substances available in water.

+ Disinfection equipment : Here, water will be completely destroyed of viruses and bacteria before being discharged into the environment.

MT Wastewater Treatment System User Manual - Model: MT-YT300



The machine operates by a float control mechanism. When there is wastewater, the machine will automatically operate. When there is no water, the machine will automatically stop. It can be easily installed, the input and output are connected, and the power supply will automatically operate.

The time to replace the filter system in the machine depends on the specific level of use  :

  • Germicidal lamp: 5000 working hours equivalent to 150,000 liters (about 2 years)
  • Microbiological column: 72,000 liters (about 1 year)
  • Metal removal material column: 72,000 liters (about 1 year)

Specifications

  • Dimensions: LxWxH: 90 x 40 x 90 (cm)
  • Voltage: 220V/ 50HZ
  • Power consumption: 80W
  • UV lamp: 1G - 6W
  • Inlet pipe: phi 34
  • Water outlet pipe: phi 27
  • Filtration capacity: 150 – 300L/day
  • Warranty: 1 year electrical parts.

PRODUCT RECOGNITION

  • Clear origin: Kosovota products are registered trademarks and manufactured and assembled by Minh Thu Production, Service and Trading Company Limited.
  • You can verify the genuine origin of the product through the anti-counterfeit stamp system, VTRUE electronic authentication stamp, warranty stamp and sharp, specific and clear labels.
  • On the company's unique Kosovota brand labels, there is a QR code and when scanning the code, customers will receive information about the product's origin, which is the name and address of Minh Thu Company.

Contact us for the best price!

With 15 years of experience in the field of water treatment, Minh Thu Production, Service and Trading Company Limited not only provides customers with quality water filtration systems and water treatment materials, but also consults on treatment solutions, designs, installs and maintains modern water filtration systems with the following criteria:

  • Top product quality today, with the motto " Quality speaks for itself! "
  • Professional and dedicated advice to help you find the products that best suit your water source and usage needs.
  • Fast delivery within 24 hours, on time. Detailed and complete instructions.
